Woven friction material · Brass wire reinforced · UAE stock
A safe, modern replacement for asbestos brake material. Woven from heat-resistant yarn with brass wire and glass fibre, then resin-impregnated and heat-cured for smooth, low-noise, high-durability braking on ship windlass, winches, cranes and heavy machinery.
Certified free of asbestos, safe for health and environment
Approved for ships and offshore installations
Ready inventory, UAE and GCC delivery
Width, thickness and length to your equipment

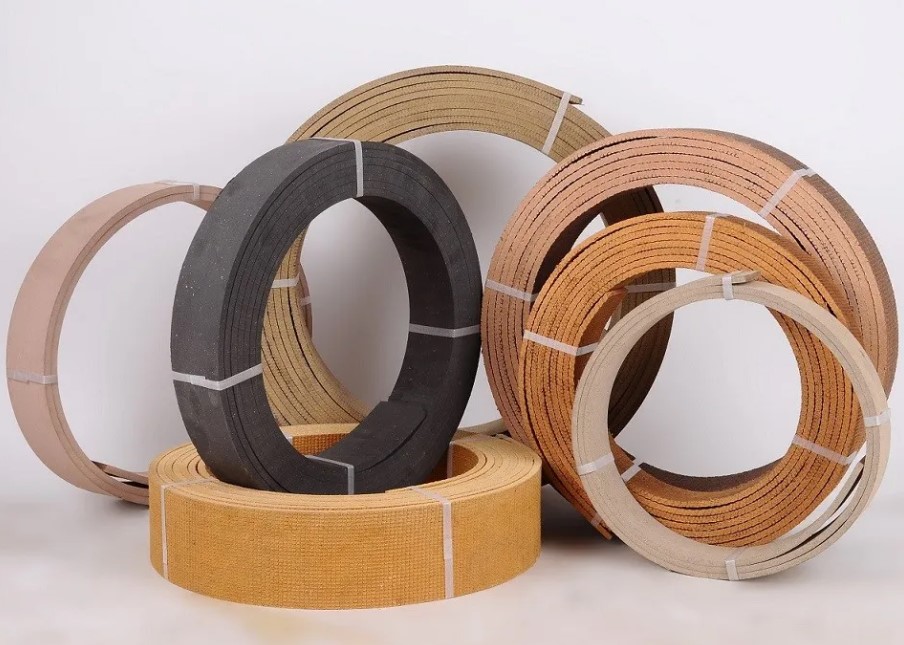

Non-asbestos woven brake lining is a safer, high-performance replacement for older asbestos linings. The band is braided from heat-resistant, wear-resistant yarn wrapping glass fibre and fine brass wire, then dipped in synthetic resin and heat-treated. The brass and copper wire inclusion helps conduct heat away from the braking surface, keeping the friction value stable under hard, repeated use.
It is built for dry-condition, heavy-duty braking on cargo ships, windlass, winches and cranes, as well as commercial vehicles and large industrial machinery. Hamza Fasteners supplies it as a woven roll, cut to your required width, thickness and length. Order at the best price in Dubai from a trusted ship brake liner supplier serving the UAE and GCC.
Certified performance data for the woven non-asbestos grade. Confirm exact figures for your order with our team.
This datasheet shows one representative grade for reference only. Non-asbestos brake lining is supplied in the full range of thicknesses, widths, lengths and friction grades — not a single option. It is cut to your equipment and duty. Tell us your requirement and we will confirm the right grade, size and price.
| Interface Temp. | Coefficient µ | Wear Rate (cm³/N·m) |
|---|---|---|
| 100 °C | 0.40 – 0.65 | < 0.8 × 10⁻⁷ |
| 150 °C | 0.35 – 0.65 | < 1.1 × 10⁻⁷ |
| 200 °C | 0.30 – 0.60 | < 1.3 × 10⁻⁷ |
| Max Pressure | 250 psi |
|---|---|
| Max Rubbing Speed | 5000 ft/min |
| Max Intermittent Temp. | 340 °C / 644 °F |
| Max Continuous Temp. | 316 °C / 600 °F |
| Ultimate Tensile Strength | 376 kg/cm² |
| Construction | Woven, brass wire inserted |
Ship anchor handling brakes
Deck winches and capstans
Port and offshore lifting gear
Light and heavy-duty braking
Arduous marine duty cycles
Big-powered industrial equipment
Stocked in Deira, Dubai and cut to size for fast dispatch. Wherever your ships, ports or plants operate, we supply certified asbestos-free brake lining in stock and project quantities.
Hamza Fasteners is a trusted non-asbestos brake lining supplier in Dubai and across the United Arab Emirates — Abu Dhabi, Sharjah and Ajman — with regular export supply to Saudi Arabia (Riyadh, Jeddah, Dammam), Qatar (Doha), Kuwait City, Oman (Muscat) and key East and West African ports including Tanzania (Dar es Salaam), Kenya (Mombasa and Nairobi), Nigeria (Lagos) and Ethiopia (Addis Ababa). Looking for a "ship brake liner supplier near me" or the best woven brake lining price in your city? Send us your thickness, width and length for a same-day quote with the datasheet.
Share the thickness, width, length and equipment type. We will confirm the grade and send a quick quote with the datasheet.
