A brake lining rarely fails without warning, but the warning is easy to miss. Glazed surfaces, a softening binder or a slowly falling friction level can go unnoticed until a loaded truck runs long on a descent or a crane brake slips under a lift.
The advantages of non asbestos brake linings go well beyond removing a carcinogen from the workshop. Modern formulations deliver stable friction, controlled wear and lower noise under the heat and dust that define UAE operations. This guide explains the engineering behind those gains and how to specify them for Dubai and GCC fleets.
It is written for fleet maintenance directors, industrial engineers and procurement heads who need evidence, not slogans, before changing a friction specification.
The advantages of non asbestos brake linings are worker safety, thermal stability, consistent friction, longer rotor and drum life, and lower noise. Modern aramid, glass, ceramic and metallic formulations match or exceed asbestos performance without releasing carcinogenic fibers during use, grinding or replacement.
Each advantage maps to a measurable operating outcome. The list below links the engineering property to the result a fleet or plant actually sees.
The sections that follow take each one in turn, starting with the health case that drove the change.
Asbestos was used in brake linings for decades because it resists heat and is cheap, but its fibers cause fatal lung disease. Regulators and employers moved to asbestos-free friction materials after the health evidence became overwhelming, and modern composites now match its thermal performance.
Chrysotile, the fiber most used in friction products, splits into microscopic fibrils that stay airborne and lodge deep in lung tissue. Asbestosis and mesothelioma can appear decades after exposure. The World Health Organization treats all forms of asbestos as carcinogenic.
Brake work concentrates the risk. Lining dust collects inside drums, and compressed-air cleaning, dry sanding and bench grinding put it in the breathing zone.
Even a fleet that never buys asbestos linings may service legacy vehicles or imported equipment fitted with old stock. Eliminating the fiber at the source is safer than relying on respirators and housekeeping alone.
Workplace and environmental frameworks such as OSHA’s asbestos standards, EPA regulation of asbestos and ISO 14001 environmental management set the benchmark that most multinational clients expect. In the UAE, federal environmental law and local authorities such as Dubai Municipality govern workshop emissions and hazardous waste, so confirm current requirements with your HSE team.
In practice, three reference points matter to procurement:
Ask every supplier for an asbestos-free declaration and batch traceability. Working with vetted asbestos free brake lining suppliers protects the buyer when an audit arrives.

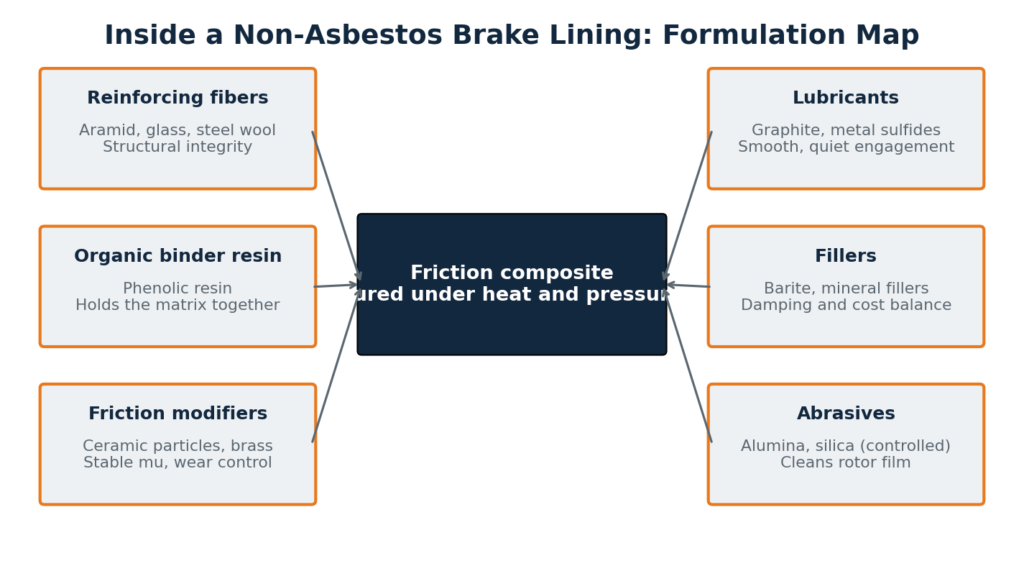

A non-asbestos lining is a cured composite of reinforcing fibers, phenolic binder resin, friction modifiers, lubricants and fillers. Aramid and glass fibers supply strength, resin holds the matrix together, and ceramic or brass particles set the friction level and wear rate.
Each ingredient solves a specific problem:
Formulation is a balancing act. More metal raises heat capacity but can raise rotor wear and noise. More organic content quiets braking but lowers the temperature ceiling. Quality suppliers publish friction and wear data to show where they landed, which is the clearest measure of industrial brake lining performance.

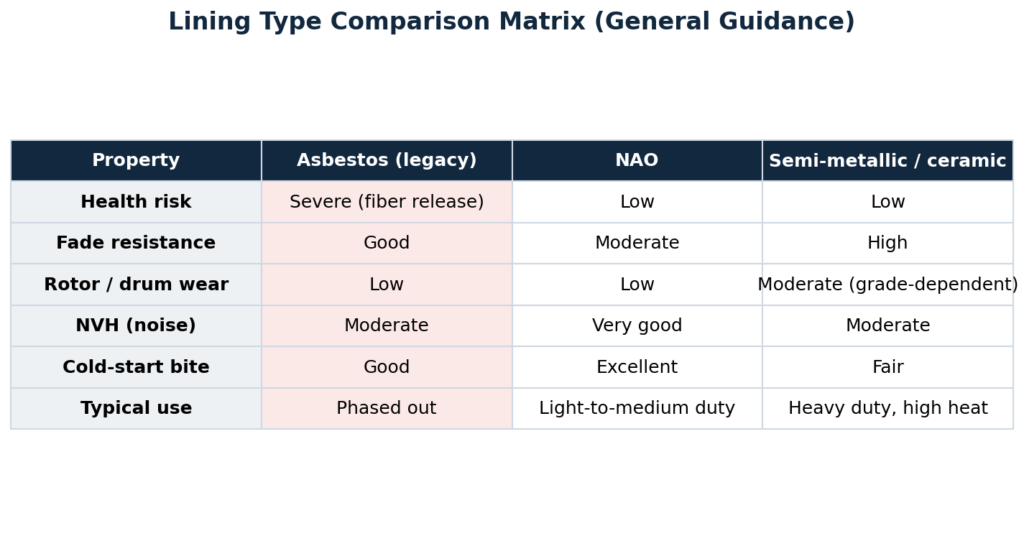

NAO linings favor quiet, gentle braking for light-to-medium duty, semi-metallic linings favor high heat capacity for severe duty, and ceramic linings favor low dust and stable friction. Asbestos is listed only as the legacy baseline, because no reputable supplier should recommend it today.
| Property | Asbestos (legacy) | NAO | Semi-metallic / ceramic |
|---|---|---|---|
| Health risk | Severe (fiber release) | Low | Low |
| Fade resistance | Good | Moderate | High |
| Rotor / drum wear | Low | Low | Moderate (grade-dependent) |
| NVH (noise) | Moderate | Very good | Moderate |
| Cold-start bite | Good | Excellent | Fair |
| Typical use | Phased out | Light-to-medium duty | Heavy duty, high heat |
Treat this table as general guidance. Individual grades vary, and ceramic and low-steel semi-metallic formulations narrow several of the gaps.

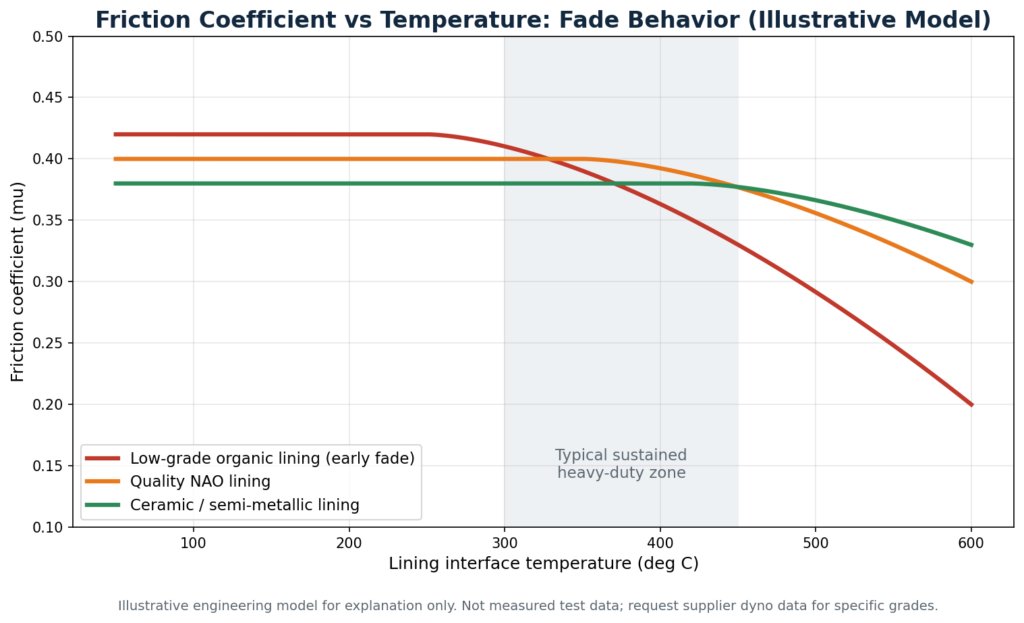

Brake fade is the loss of friction coefficient as lining and rotor temperatures climb. Non-asbestos linings resist it through heat-stable resins, ceramic particles and metallic fibers that conduct heat away from the interface, which keeps braking torque predictable on long descents and repeated stops in Gulf summers.
Summer ambient temperatures in the Gulf can exceed 45°C, which shrinks the cooling margin before a brake even engages. Drums and rotors in continuous service can then climb to several hundred degrees Celsius.
Fade comes in two forms. Thermal fade occurs when the binder decomposes and releases gas at the interface. Mechanical fade occurs when a hot drum expands away from the shoes.
Well-designed non-asbestos linings address both. These are the main design levers:
Consider a loaded tipper truck descending a quarry ramp in August. The failure rarely arrives as a single event. It builds in stages:
Crane hoists and marine winches fail differently. Under sustained load, the brake slips slowly instead of stopping late. Specify these brakes with generous thermal margin and verify them on holding-torque tests, not only on stopping tests.
Friction coefficient stability means the lining produces nearly the same braking force whether the brake is cold, hot, wet or dusty. Well-engineered non-asbestos formulations hold the coefficient (μ) within a narrow band across speed, temperature and pressure, so operators get proportional response and engineers can size brakes with confidence.
Braking torque follows a simple relation: T = μ × Fn × r, where Fn is the clamping force and r is the effective radius. Any drift in μ changes torque directly. Engineers size brakes around a design μ with a safety margin, so a lining that drifts consumes that margin.
Four conditions test stability in the UAE:
Reputable suppliers quantify these shifts on inertia dynamometers, using procedures such as SAE J661. Ask for normal μ, hot μ, fade and recovery values, speed sensitivity and wet recovery. Matching those numbers to the duty cycle of your heavy machinery components prevents surprises in service.
Need a second opinion on a lining specification? Review our brake linings range and technical guidance to compare grades by duty cycle before your next maintenance window.
Yes, well-matched non-asbestos linings extend rotor and drum life because they wear the mating surface gently and form a stable transfer film. Less abrasive wear means fewer machining cycles, fewer early replacements and less unplanned downtime, which directly lowers fleet maintenance cost per kilometre or per operating hour.
Rotors and drums are expensive, slow to replace and often the real cost driver. A cheap lining that scores a drum costs far more than it saves.
The benefit comes from how the lining wears. Abrasive wear removes material from the rotor, while a stable transfer film lets the lining wear against a thin layer of its own material. Gentle, uniform wear means:
The lining and the mating surface must be treated as a pair. A hard semi-metallic lining on a soft or thin drum can score it quickly, and that is an engineering mismatch, not a lining defect.
Mounting hardware matters too. Loose rivets, worn anchor pins and incorrectly torqued bolts distort contact and cause uneven wear. Use quality industrial fasteners for linings and backing plates.
Track wear in millimetres per 10,000 km, or per 1,000 operating hours, for both lining and mating surface. That data turns the advantages of non asbestos brake linings from a claim into a number.
Non-asbestos linings reduce noise and vibration by damping the stick-slip oscillations that cause squeal and chatter. Organic binders, fillers and lubricants absorb vibration energy, while controlled compressibility keeps contact pressure even, giving quieter and smoother braking in workshops, ports and city delivery routes.
Squeal is friction-induced vibration, usually in the kilohertz range. Chatter and judder sit at lower frequencies and often trace to uneven friction or thickness variation.
NVH is more than comfort. Noise adds to operator fatigue, counts toward workplace noise exposure and prompts complaints on urban routes. Judder can also mask developing faults.
These are the main damping mechanisms:
Before blaming the lining for noise, inspect the hardware. Corroded shims, loose anchor points and worn brackets can create noise that looks like a material problem. Keep a stock of correct industrial hardware so repairs do not rely on improvised parts.
Non-asbestos linings serve heavy commercial trucks, overhead cranes, mining and construction equipment, marine winches and plant machinery across the UAE. Each application stresses the lining differently, so the right grade depends on duty cycle, heat load, mating surface and environment rather than on the machine category alone.
Suppliers offering non asbestos friction lining Dubai buyers can rely on should help translate these categories into a grade recommendation, not just a part number.
Evaluate the lining against five factors: duty cycle, heat load, mating surface, environment and verification data. Documenting each factor before purchase turns a part-number swap into an engineered specification, and it exposes mismatches such as a hard semi-metallic lining on a soft cast-iron drum.

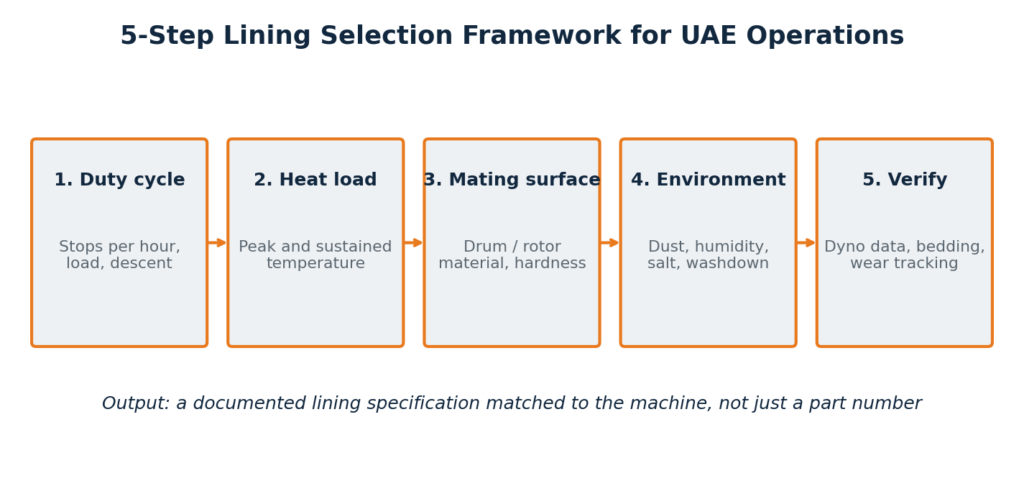

Use this five-step framework (Duty, Heat, Mating surface, Environment, Verification) for every lining decision:
Before approving a purchase, confirm the following:
| Failure mode | Typical cause | Early signal | Control |
|---|---|---|---|
| Glazing | Low-temperature, light-duty use of a high-temperature grade | Shiny surface, weak bite | Match grade to duty; re-bed or resurface |
| Binder burn-out | Sustained over-temperature | Crumbling edges, burnt smell | Upgrade grade; review braking practice |
| Contamination | Oil, grease or water on the lining | Grab, pull or low μ | Fix leaks; replace contaminated linings |
| Poor bedding-in | Skipped or rushed break-in | Early fade, uneven transfer film | Follow supplier bedding procedure |
| Hardness mismatch | Hard lining on soft drum | Scoring, rapid drum wear | Match lining to mating surface |
| Uneven wear | Out-of-round drum or loose hardware | Judder, taper wear | Machine drum; check fasteners |
Non-asbestos linings carry real trade-offs: NAO grades have lower maximum temperature limits than semi-metallic grades, some are sensitive to moisture and contamination, and premium formulations cost more. These limits are manageable when the grade is matched to the duty cycle and the installation is controlled.
A balanced evaluation includes these points:
None of these cancels the advantages of non asbestos brake linings. They explain why specification discipline matters.
The advantages of non asbestos brake linings combine safety and engineering. They remove a proven carcinogen, hold friction under Gulf heat, protect expensive mating surfaces and reduce noise across demanding UAE applications.
The decision still needs rigor. Match the grade to the duty cycle, verify the data, follow the bedding procedure and track wear. Teams that do this see fewer surprises and lower cost over the life of the equipment.
For a reference your team can bookmark, keep this guide to NAO brake linings UAE buyers on hand during procurement reviews.
Planning a lining change or fleet audit? Talk to the Hamza Fasteners team about matching non-asbestos brake linings to your machinery, duty cycle and compliance requirements.
The main advantages are elimination of carcinogenic fibers, stable friction at high temperature, longer rotor and drum life, lower noise, and broad suitability across industrial duty cycles. Together they cut health risk, unplanned downtime and maintenance cost for UAE fleets, cranes and marine equipment.
Yes, modern non-asbestos linings match asbestos in heavy-duty use when the grade fits the duty cycle. Semi-metallic and ceramic formulations can match or exceed legacy thermal capacity, while NAO grades suit lighter duty. Request dynamometer data for your load, speed and temperature range before a fleet-wide change.
Inspect linings at every scheduled service and shorten the interval for severe-duty work in summer. Measure remaining thickness, check for glazing, cracks and oil contamination, and inspect the drum or rotor surface at the same visit. Set the interval from duty cycle and wear history, not a fixed calendar date.
