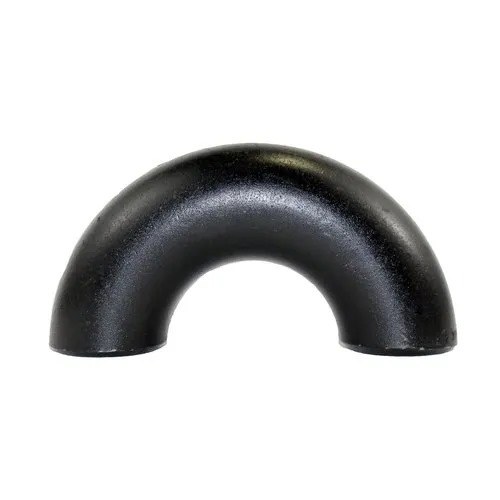

180° LR return · carbon steel A234 WPB · ASME B16.9 · Dubai stock
A carbon steel 180° long radius return bend that reverses the direction of a welded line in one fitting, used in heating coils, heat exchangers and pipe loops. ASME B16.9, SCH 40 and SCH 80.
Checked stock, standard-compliant
Full sizes, ratings & materials
Ready inventory, UAE & GCC delivery
Project quantities at best price
The buttweld 180° return bend turns a line back on itself, with the two ends side by side at a centre-to-centre distance of three times the nominal size. One fitting replaces two 90° elbows and their weld, which saves time and gives a smoother path. Ends are bevelled for butt welding and the fitting carries the same rating as matching pipe.
We supply 180° LR returns from 1" to 8" in SCH 40 and SCH 80. They are used in fired heater and tank heating coils, heat exchanger and cooling loops, expansion loops, and in fabricated handrails and frames. Short radius returns are available on request. Each return is seamless with even wall. Send your sizes to Hamza Fasteners in Dubai for a price.
Reference data for Buttweld 180° Return. Confirm exact size, rating and material for your order with our team.
This datasheet shows representative sizes for reference only. Buttweld 180° Return is supplied in the full range of sizes, ratings and materials — not a single option. Tell us what you need and we will confirm exact availability, specification and price.
| Size | OD (mm) | Centre to Centre O (mm) | 90° LR Equivalent A (mm) |
|---|---|---|---|
| 1" | 33.4 | 76 | 38 |
| 1-1/2" | 48.3 | 114 | 57 |
| 2" | 60.3 | 152 | 76 |
| 2-1/2" | 73.0 | 190 | 95 |
| 3" | 88.9 | 229 | 114 |
| 4" | 114.3 | 305 | 152 |
| 6" | 168.3 | 457 | 229 |
| 8" | 219.1 | 610 | 305 |
| Product Type | 180° return bend, long radius |
|---|---|
| Material | ASTM A234 WPB carbon steel |
| Standard | ASME B16.9 |
| Schedule | SCH 40, SCH 80 |
| End Prep | 37.5° bevel |
| Size Range | 1" – 8" |
Tank and heater coils
Tube returns
Process cooling
Thermal movement
Tracing returns
Frames and rails
Stocked in Deira, Dubai and delivered fast across the region. Wherever you are building, we supply in stock and project quantities.
Hamza Fasteners is a trusted Buttweld 180° Return supplier in Dubai and across the United Arab Emirates — Abu Dhabi, Sharjah and Ajman — with regular export supply to Saudi Arabia (Riyadh, Jeddah, Dammam), Qatar (Doha), Kuwait City, Oman (Muscat) and key East and West African markets including Tanzania (Dar es Salaam), Kenya (Nairobi and Mombasa), Nigeria (Lagos) and Ethiopia (Addis Ababa). Looking for a "Buttweld 180° Return supplier near me" or the best price in your city? Send us your requirement for a same-day quote.
Share the size, material, rating and quantity. We will confirm stock and send a quick quote with the datasheet and best price.
