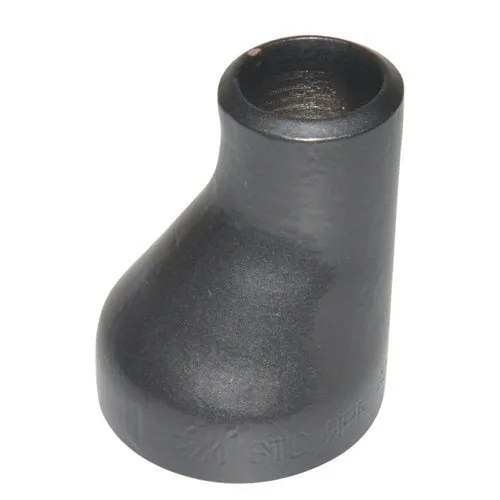

Eccentric reducer · carbon steel A234 WPB · ASME B16.9 · UAE stock
An offset buttweld reducer with one flat side, fitted flat-on-top at pump suctions to prevent air pockets, or flat-on-bottom so lines drain. Carbon steel to ASME B16.9, SCH 40 and SCH 80.
Checked stock, standard-compliant
Full sizes, ratings & materials
Ready inventory, UAE & GCC delivery
Project quantities at best price
An eccentric reducer steps a welded line down in size with the small end offset, so one side of the fitting stays straight. On a horizontal pump suction it is installed flat side up, so no air can collect at the top and cause cavitation. On pipe racks and drain lines it is installed flat side down, keeping the bottom of pipe level for drainage and supports.
Hamza Fasteners stocks eccentric reducers from 1" x 3/4" to 8" x 6" in SCH 40 and SCH 80, bevelled for welding. They are used at pump suctions in water, fire and chilled water plant, on slurry and process lines and on pipe racks. Each end is bevelled ready to weld. Send the large x small sizes to our Dubai store for a price.
Reference data for Eccentric Reducer. Confirm exact size, rating and material for your order with our team.
This datasheet shows representative sizes for reference only. Eccentric Reducer is supplied in the full range of sizes, ratings and materials — not a single option. Tell us what you need and we will confirm exact availability, specification and price.
| Size | Large OD (mm) | Small OD (mm) | Length H (mm) | Offset (mm) |
|---|---|---|---|---|
| 1" x 3/4" | 33.4 | 26.7 | 51 | 3.3 |
| 1-1/2" x 1" | 48.3 | 33.4 | 64 | 7.4 |
| 2" x 1" | 60.3 | 33.4 | 76 | 13.4 |
| 2" x 1-1/2" | 60.3 | 48.3 | 76 | 6.0 |
| 3" x 2" | 88.9 | 60.3 | 89 | 14.3 |
| 4" x 2" | 114.3 | 60.3 | 102 | 27.0 |
| 4" x 3" | 114.3 | 88.9 | 102 | 12.7 |
| 6" x 4" | 168.3 | 114.3 | 140 | 27.0 |
| 8" x 6" | 219.1 | 168.3 | 152 | 25.4 |
| Product Type | Eccentric reducer |
|---|---|
| Material | ASTM A234 WPB carbon steel |
| Standard | ASME B16.9 |
| Schedule | SCH 40, SCH 80 |
| End Prep | 37.5° bevel both ends |
| Size Range | 1" x 3/4" – 8" x 6" |
Flat side up
Suction headers
Pump inlets
Flat bottom on supports
Drainable runs
Pump inlets
Stocked in Deira, Dubai and delivered fast across the region. Wherever you are building, we supply in stock and project quantities.
Hamza Fasteners is a trusted Eccentric Reducer supplier in Dubai and across the United Arab Emirates — Abu Dhabi, Sharjah and Ajman — with regular export supply to Saudi Arabia (Riyadh, Jeddah, Dammam), Qatar (Doha), Kuwait City, Oman (Muscat) and key East and West African markets including Tanzania (Dar es Salaam), Kenya (Nairobi and Mombasa), Nigeria (Lagos) and Ethiopia (Addis Ababa). Looking for a "Eccentric Reducer supplier near me" or the best price in your city? Send us your requirement for a same-day quote.
Share the size, material, rating and quantity. We will confirm stock and send a quick quote with the datasheet and best price.
